Testo Smart Probes – AC & refrigeration test kit 2 x testo 549i high-pressure measuring instrument 2 x testo 115i clamp thermometer




Product temporarily unavailable

Do you need to buy large quantities?

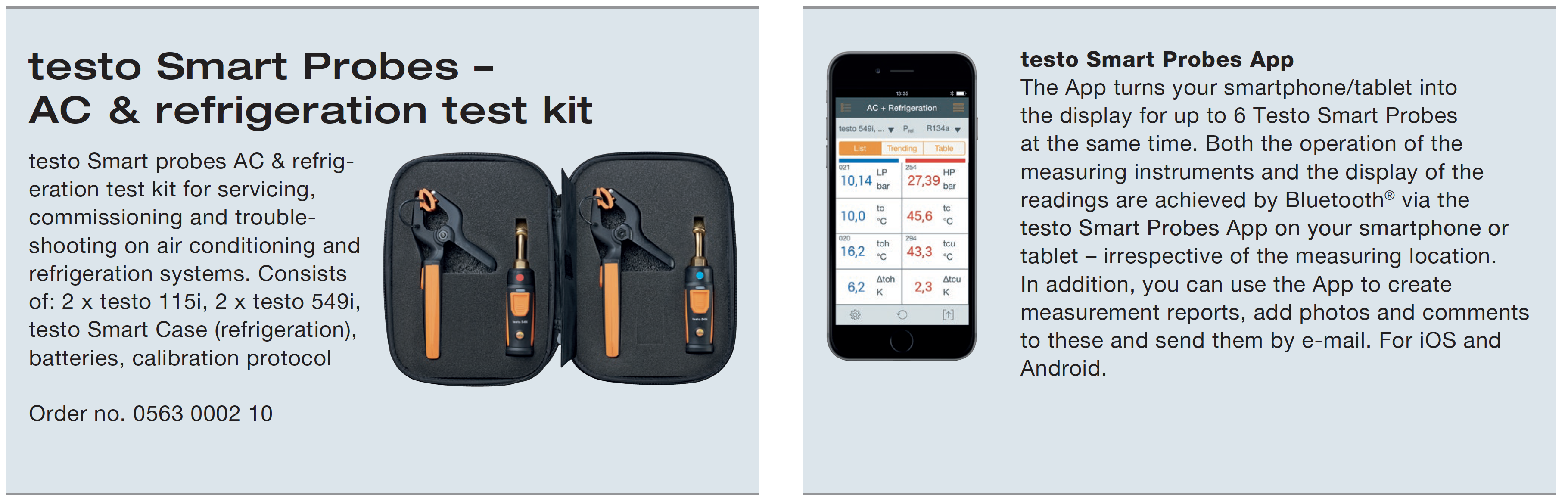

The compact AC & refrigeration test kit contains the testo 549i high‑pressure measuring instrument as well as the testo 115i clamp thermometer (two of each).

In conjunction with a smartphone or tablet, the refrigeration kit is ideally suited to servicing and troubleshooting on air conditioning and refrigeration systems, as well as their installation.

Both measuring instruments can be quickly and easily attached directly at the pressure connection or the temperature measuring point.

They also make it considerably easier to work on measuring points that are a long distance apart, thanks to wireless connection to a smartphone or tablet.

The measuring values of both instruments are transmitted via Bluetooth® connection to the App installed on the terminal device enabling convenient and flexible readout.

In the App, measurement parameters (such as temperature or pressure) can be deleted, added or their order altered with just one click.

It is also possible to change the displayed measurement parameters just as quickly.

In addition, the App enables automatic calculation of evaporation and condensation temperatures.

All measurement data are presented either as a diagram or a table.

Finally, the measurement data report can be emailed directly as a pdf or Excel file.

The handy testo Smart Case enables the measuring instruments to be conveniently transported and ensures that they are always to hand when they are needed.

Technical features:

  • Compact professional measuring instruments from the Testo Smart Probes series for use with smartphones/tablets
  • Application-specific menus: superheating/subcooling
  • Low refrigerant loss thanks to hoseless application
  • Measurement data analyzed and sent via testo Smart Probes App
  • More than 90 common refrigerants stored in the testo Smart Probes App, plus refrigerant updates
  • 100 m Bluetooth® range for particularly flexible applications

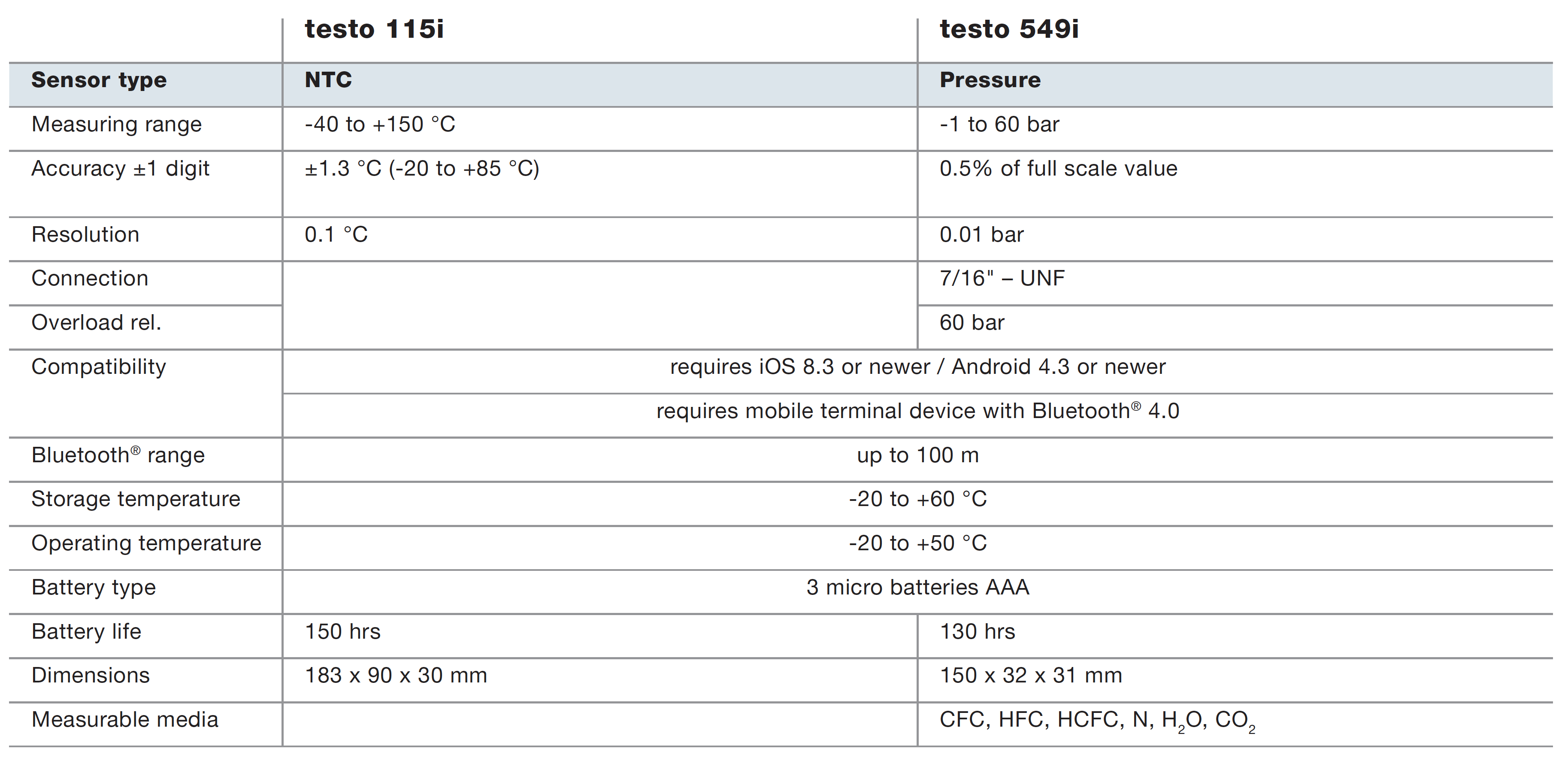

Technical Specifications:



EAN 4029547022425
Packaging Overall Dimensions 229 x 241 x 140 mm.
Package weight 1.3 Kg.
Item number F-AF-GM-KTPRTM-002
Packaging Cardboard box
