Universal holder (plate) - suitable for 1- and 2,5-liter refillable refrigerant cylinders

$ 0.00 / Pieces
VAT Excluded

Product Quantity:

Do you need to buy large quantities?

Universal holder (plate) - suitable for 1- and 2,5-liter refillable refrigerant cylinders

Suitable for small cylinders of R134a, R404A, R407C, R410A etc.

Description:

¼" SAE female connection
diameter of the plate: 8.5 cm.
Supplied with:
No. 1 female-female capillary tube ¼" x ¼"
No. 1 female-female capillary tube ¼" x 5/16"
No. 1 straight reduction fitting 1/4" male x 5/16" female

NOTE: Suitable for use in conjunction with the 7 kg capacity precision electronic scale:

Click on image for scale product sheet:

Bilancia elettronica di alta precisione, portata fino a 7 kg, lettura in grammi e once - adatta per bombolette ricaricabili di gas refrigerante da 1 e 2,5 litri - Foto 1

NOTE: Connection to R32 canisters with ½" ACME valve left:

For connection to canisters of R32 the tap valve with female 1/2 ACME left inlet - 1/4 SAE male (right) outlet with depressor must be added to this kit

The tap valve is available at this link (click on the image below):

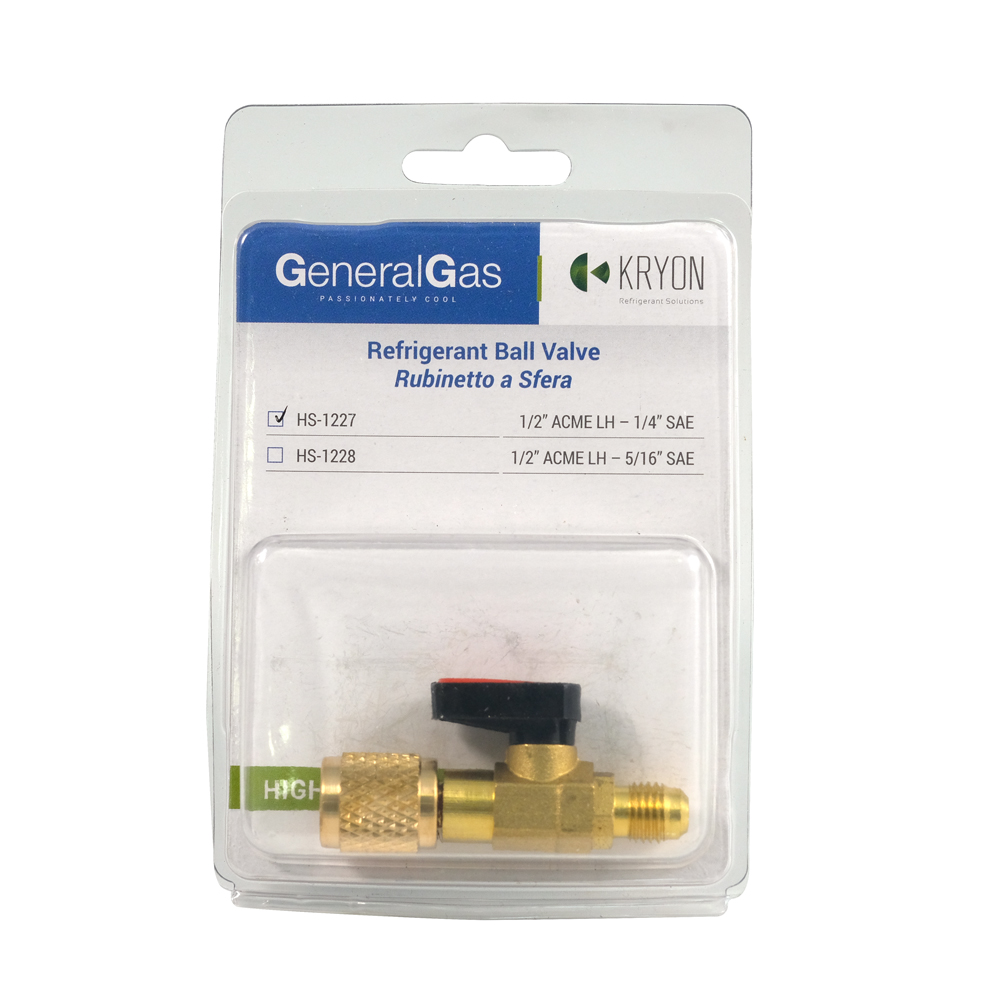

 Valvola rubinetto R32 - R1234yf - R290 - ingresso femmina 1/2 ACME sinistro - uscita 1/4 SAE maschio (destro) con depressore - Foto 1

NOTE: Connection to R600a and R290 canisters with 7/16" 20 UNF male valve:

For connection to canisters of R600A and R290 the fitting with 7/16" 20 UNF female inlet and ¼" SAE male outlet with depressor should be added to this kit

The fitting is available at this link (click on the image below):

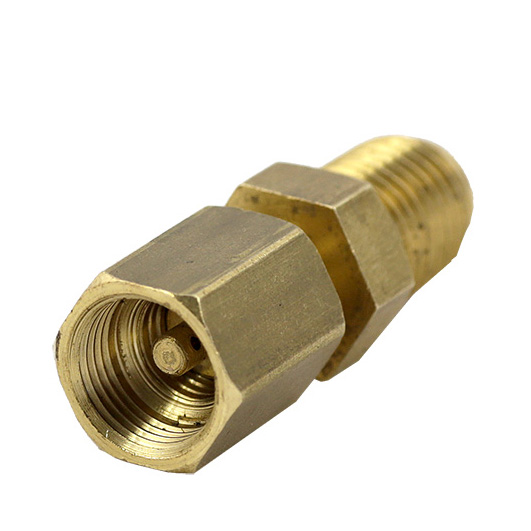

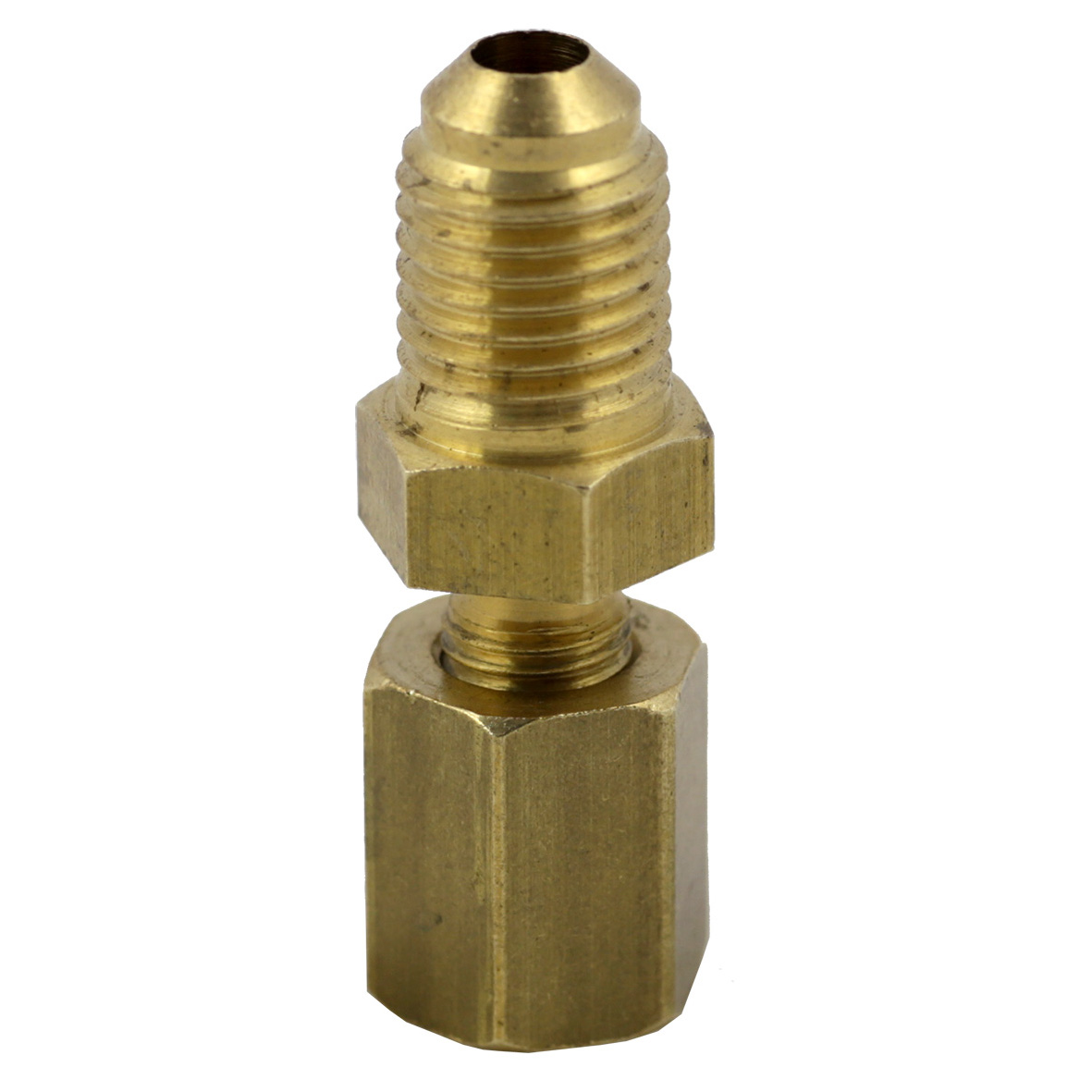

Raccordo per Bombola Aerosol, ingresso femmina 7/16 20 UNF, uscita 1/4 SAE maschio RAC (R134a, R22, R600a, R290) - Foto 2Raccordo per Bombola Aerosol, ingresso femmina 7/16 20 UNF, uscita 1/4 SAE maschio RAC (R134a, R22, R600a, R290) - Foto 1



EAN n.d.
Cylinder/Container size Non Applicabile
Package weight 1 Kg.
Item number F-AF-SM-SUP-GAS-7K
Packaging Cardboard box
